Hyper Proximal Femoral Nail ​

Hyper Proximal Femoral Interlocking Nail – Short

  • – Pertrochanteric fractures (31-A1 and 31-A2)
  • – Intertrochanteric fractures (31-A3)
  • – High subtrochanteric fractures (32-A1)

Hyper Proximal Femoral Interlocking Nail – Long

In addition to the indications for the Short Nail system,

  • – Low and extended subtrochanteric fractures
  • – Ipsilateral trochanteric fractures with shaft femur fractures
  • – Pathological fractures of the proximal femur
  • Insertion of the nail through Greater Trochanter assisted by the 5° Valgus built into the nail
  • Static or dynamic locking can be performed via the aiming arm in 180 mm & 240 mm length nails. The long nails additionally can be planned for secondary dynamization

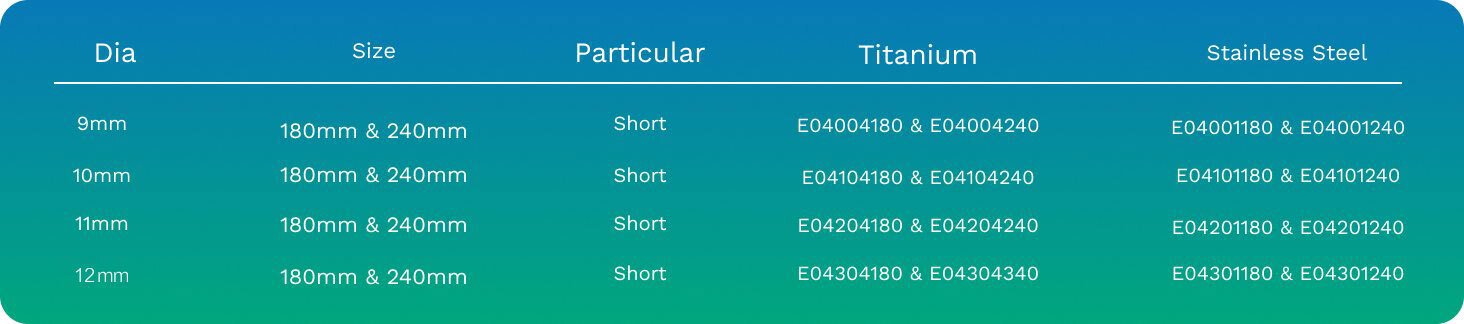

  • Product range
    • – Short Nail – Available in length 180 mm & 240 mm in 9, 10, 11, 12 mm  applicable for Left or Right Proximal femur
    • – Long nail is anatomical, designed separately for Left femur and Right femur – Available in length 340 mm to 440 mm (in 20mm increments) in 9, 10, 11, and 12 mm with anterior bow curvature of 1500 mm
  • Proximally two options of cephalic bone purchase
    • – Helical Blade Self-locking device ( 13-10 mm)
    • – Hip Screw ( 10 mm) with set screw system
    • – Rotational and angular stability achieved with one single blade or screw
  • Optional additional rotational stability of femur Head fragment with use of Anti-rotation Screw by Miss-The-Nail technique
    • – Unique device – Anti-rotation Jig uses the Miss-The-Nail technique to site the additional Anti-Rotation screw into the neck & head
    • – Prevents rotation of the head
    • – Size –  4.0 mm, Length options: 65 to 115mm, in 5mm increments
  • Slimmest Nail Ever – Pioneering the use of Reduced proximal diameter of the nail without any compromise of Stability, Safety and comfort of use
    • – ⌀ 15 mm Proximal
    • – Less reaming and bone loss in the proximal femur
    • – Bone conserving capabilities
    • – It can be used in younger patients and patients with narrow femur canal
